제품 상세 정보:
결제 및 배송 조건:
|
| 등급: | 인더스트리얼 | 주문 제작된 지원: | OEM, ODM |
|---|---|---|---|
| 가변성 속도: | 부정 | 정격 전압: | 380V |
| 정격 인가전력: | 14 | 주파수: | 50HZ |
| 무부하 속도: | 2000 | 모래 패드 크기: | 1700*420 |
| 애플리케이션: | 1700*420 | 중량: | 500 |
| 전원: | 전기 | 상품 이름: | 벨트 샌더 기계 |
| 키워드: | 전기사포 기계 | 기능: | 연마 |
| 표준 액세서리: | 샌더 Paper*1 | 전압: | 380V-480V |

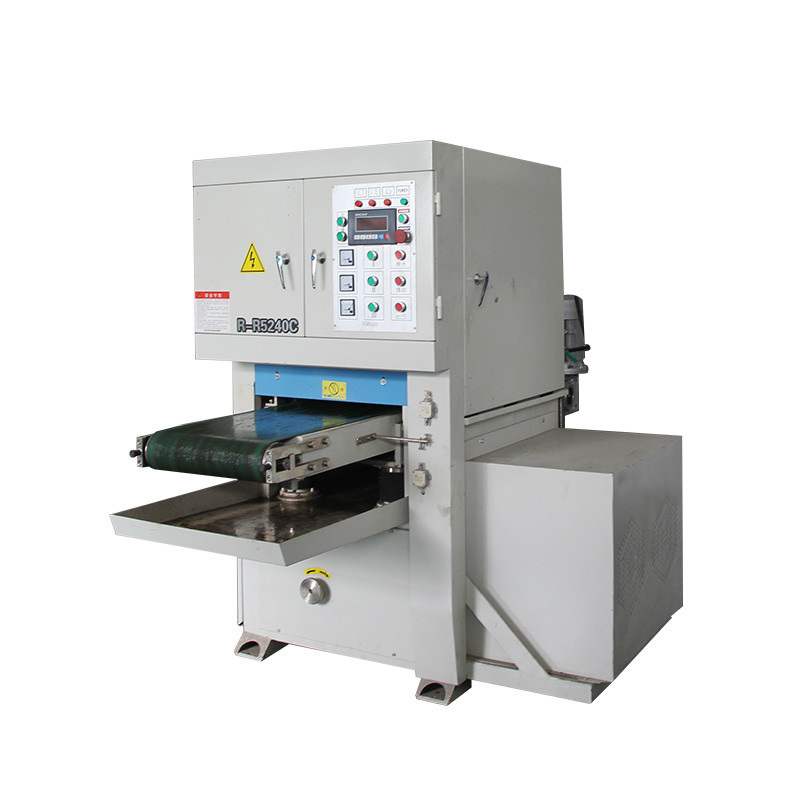

Stainless Steel Sheet automatic wide belt sanding machine brush Finish Sheet Polishing Machine
Specification
Usage
It is widely used in the surface sanding, polishing and wire drawing of metal plates and various hardware panels. The machine is divided into two types: dry grinding and water grinding. There are models of 400mm, 630mm, 1000mm, 1500mm and other specifications. The working grinding heads are also divided into single group, double group and multiple groups. Customers can choose according to process an needs.
Specification
1. Voltage 380V-50hz
2. Main Power 7.5kw
3. Total power 20.34kw
4. Abrasive belt line speed 17m/s
5. Lifting motor 0.37kw
6. Conveying motor 1.1kw
7. Consumable specifications 1900*650mm
9. air press 0.55MPa
10. Processing range W:10~600mm H:0.5~110mm
11. Conveyor belt size 3020*630mm
12. Installation size 1800*1300*2000mm L*W*H
Warranty period
All of our machine is equipped with 1 year warranty period, if there are any problem in operating it, please kindly feel free to contact us, our after-sale servicer will do their best to solve your problem.
About us
Since 2006, we produce automatic machines for polishing, buffing, grinding, wire drawing metal surfaces(rotary table, sheet, pipe,tube,oddly-shaped material and so on), processing metal such as SS, iron, brass, zinc,and aluminum. The final effect can be straight grain, round & circle grain, No.4, hairline effect and so on for grinding machine, ans smooth, satin finishing, mirror finishing, 8K mirror finshing effect for polishing machine.
· For extreme flexibility
· For the very affordable price
Your satisfaction can be our great progress!
Choose us you won't regret!
Please contact with us for more information discussion
