Name: Rotary table polishing machine
Brand: Dongguan Jinzhu Machinery Equipment Co., Ltd.
Price: 430.00 USD
Availability: InStock

집 > 상품 > 시트 연마기 >

Rotary table polishing machine

회전 테이블 폴리싱 머신

원래 장소:

광동, 중국

브랜드 이름:

JINZHU

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

상태:

새롭습니다

유입구 직경:

5.5 밀리미터

출구 직경:

1.6 밀리미터

화면 출하검사:

제공됩니다

기계류 테스트 리포트:

이용 가능하지 않습니다

마케팅 타입:

보편적 제품

핵심 구성 요소의 보증:

1년이요

핵심 구성 요소:

엔진, 모터, PLC

전압:

380, 380V-50hz

힘:

11.7

차원(L*W*H):

2300*1200*1900mm

중량:

보증:

1년이요

핵심 판매 요소:

작동하도록 쉽습니다

적용 가능한 산업:

회사를 광고한 기계류 정비소

전시실 위치:

어떤 것

상품 이름:

신선기

드로잉 소재:

철 구리

용법:

그림

애플리케이션:

선인발법

주요 권력:

3 kw

전체 전력:

11.7 kw

턴테이블 인터벌 시간:

5~20S

방추 속도:

3000

에어 프레스:

0.55mpa

강조하다:

회전 테이블 폴리싱 머신

지불 및 배송 조건

가격

$24,837.00/sets

포장 세부 사항

표준 수출 패키지

노트북 휴대 전화 셸 5 축 연결 3D 복사 CNC 밀링 및 닦기 기계

가장 좋은 가격 을 구하라

25KW 스테인레스 스틸 문 잠금 측면 판 가이드 찌질 철 도화 기계 닦는 기능

가장 좋은 가격 을 구하라

4 머리 굴착 벨트 헤어 라인 스테인리스 스틸 사틴 마무리 기계

가장 좋은 가격 을 구하라

1200mm 넓은 시트 와이어 드래잉 머신 넓은 벨트 샌딩 머신 자동 샌더

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

Product Description

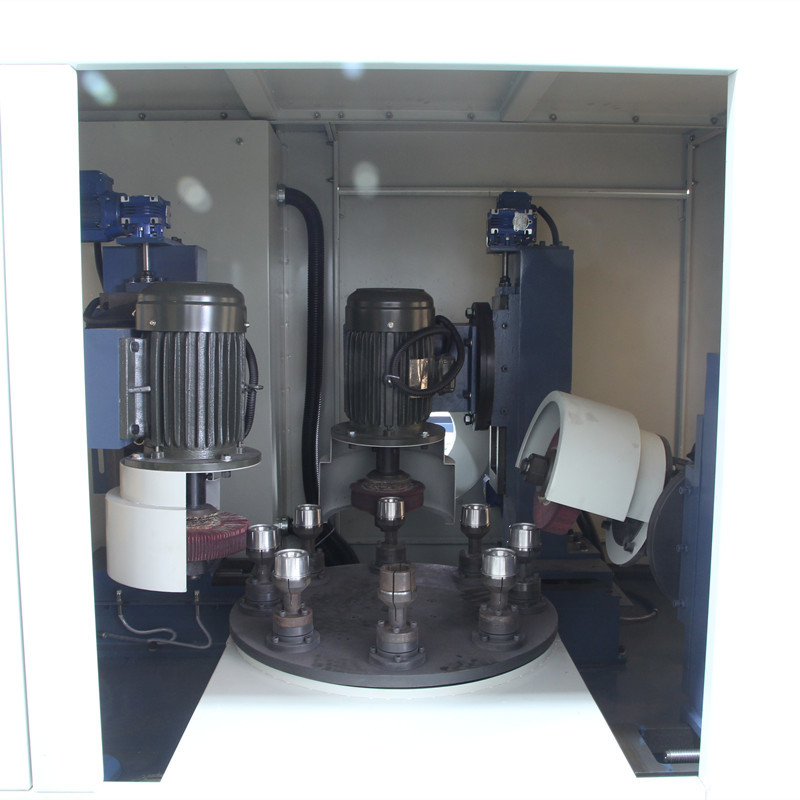

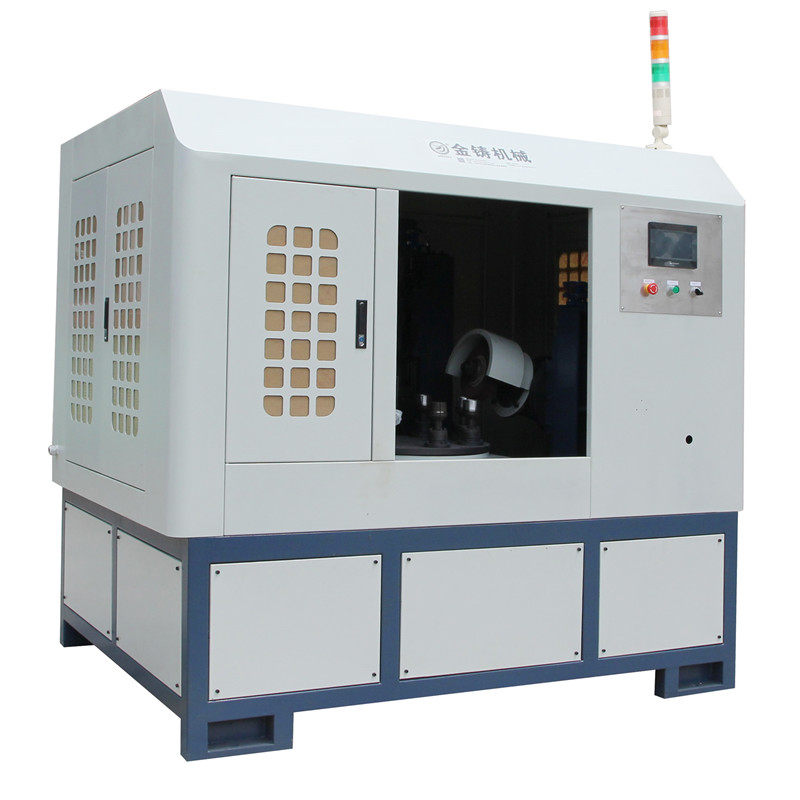

The automatic disc polishing machine is suitable for the surface sanding, grinding and polishing of pots, thermos cups, round lids, ball heads, hardware parts and other products. The machine has 2 grinding heads, 3 grinding heads, 4 grinding heads and other models, customers can choose according to actual needs, and the workpiece position can also be customized according to the output.

Voltage 380V-50hz Main Power 3kw Total power 8.32kw Turntable interval time 5~20S Spindle speed 3000r/min Waxing device Consumable specifications Φ250*50mm Consumables up and down stroke 120mm air press 0.55MPa Work position 8pcs Consumable swing range 0~40mm Installation size 2300*1200*1900mm L*W*H

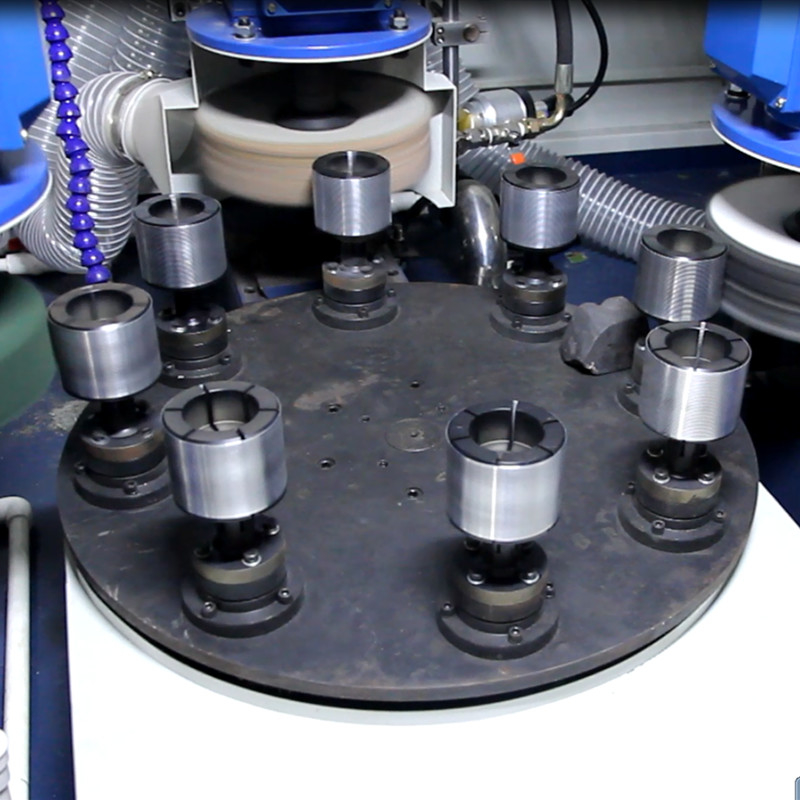

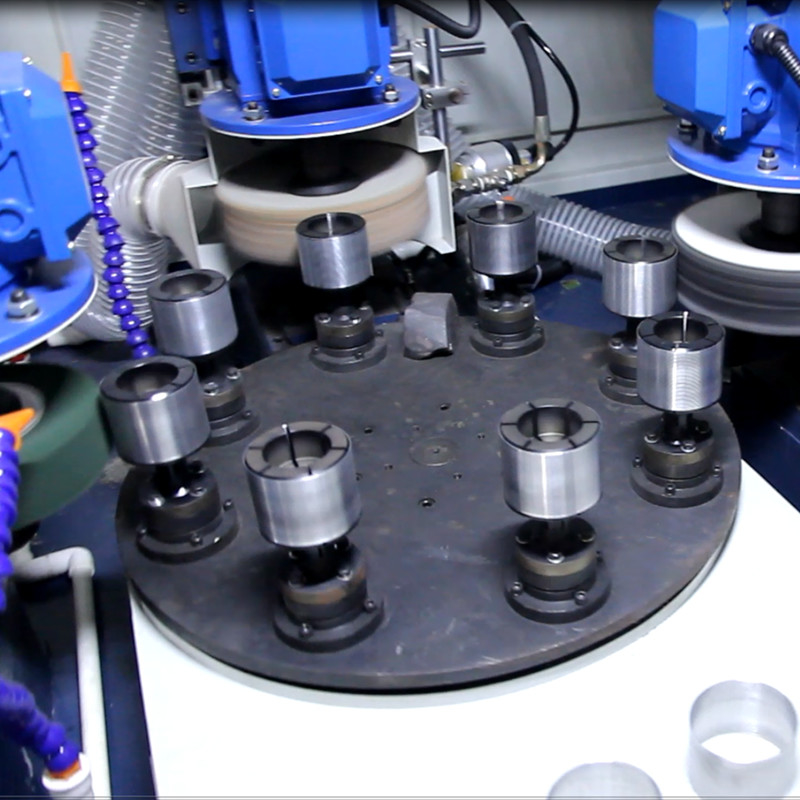

3 Grinding Head Metal Cylindrical Mirror Polishing Machine 1. Disc worktable: The whole worktable rotates at a constant speed, and the product is polished in a circular manner. 2. Fixture: It rotates at a constant speed during work, and it is customized according to the style of the processed product. 3. Bevel polishing of the upper part of the cylinder: The left polishing polishes the upper bevel of the product. (polishing angle can be adjusted) 4. Cylindrical surface polishing: The left polishing polishes the cylindrical surface of the product.

Specification

item	value
Condition	New
Inlet Diameter	5.5mm
Outlet Diameter	1.6mm
Video outgoing-inspection	Provided
Machinery Test Report	Not Available
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	Engine, Motor, PLC
Place of Origin	China
	Guangdong
Brand Name	JINZHU
Voltage	380
Power	8.32
Dimension(LWH)	230012001900mm
Weight	2
Year
Warranty	1 Year
Key Selling Points	Easy to Operate
Applicable Industries	Machinery Repair Shops, Advertising Company
Showroom Location	None
Product Name	Wire Drawing Machine
Drawing material	Steel Copper
Usage	Drawing
Application	Wire Drawing Process
Voltage	380V-50hz
Main Power	3kw
Total power	8.32kw
Turntable interval time	5~20S
Spindle speed	3000
air press	0.55MPa

Packing & Delivery

Company Profile

Dongguan Jinzhu Machinery Equipment Co., Ltd. is specialized in the design, production, sale, and professional manufacture of metal surface treatment machines, polishing machines, abrasive belt machines, wire drawing machines, cut ditch machines, sandblasting machines, CD profiling machines, spot welding machines and other equipment. For meeting the needs of different parts processing, we have developed a full range of types of machines, from manual to automatic model-based. We can produce as per customer's unique needs and capacity requirements. "Survive by technology, get credibility through quality" is our tenet. We provide high quality, reasonable prices, and after-sales services to meet customers' needs.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(24.00%),Mid East(23.00%),Domestic Market(20.00%),South Asia(15.00%),South America(7.00%),North America(5.00%),Eastern Europe(2.00%),Eastern Asia(1.40%),Central America(0.80%),Oceania(0.50%),Western Europe(0.50%),Northern Europe(0.30%),Africa(0.30%),Southern Europe(0.20%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
OEM & ODM,Finishing Machinessing,Polishing Machine,Deburring Machine,Buffing Machine

4. why should you buy from us not from other suppliers?
A top brand in China, since 2006. A wide range production line, with Specialized to be engaged in various types metal surface treatment machinery. A strong capacity & capability on delivery.Custiomization & Personalization are acceptable as per request.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
